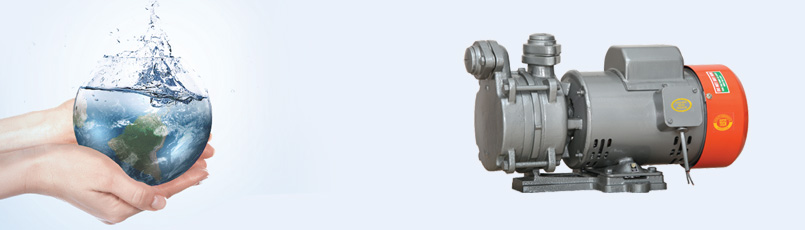

Self Priming Pump for Special Applications

Salient Features

  • Specially designed for quick and powerful suction
  • Slow speed series with robust construction for tough operating conditions
  • Suction lift up to 8 meters
  • TEFC, Capacitor Start and run motor
  • Built in thermal overload protector (TOP) to protect the motor from burning

Application

  • Domestic Use
  • Gardening
  • Pressure Boosting system

Performance Table Download

Speedy Suction Series for faster suction

Model No. Motor Power KW / HP Pipe Size in mm Mtr H-Head in Meters / Feet
3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
Feet 10 20 30 39 49 59 69 79 89 98 108 118 128 138 147 157 167 177 187 197
SS 52 0.37 / 0.50 25x25 Q Discharge in Lph 2800 2700 2600 2400 2200 2060 1880 1650 1440 1200 970 650
SS 74 0.75 / 1.0 25x25 2800 2560 2540 2500 2380 2250 2140 1960 1800 1620 1450 1280 1060 930 720 540

Magic suction series for faster suction with S.S. Volute Portion

Model No. Motor Power KW / HP Pipe Size in mm Mtr H-Head in Meters / Feet
3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
Feet 10 20 30 39 49 59 69 79 89 98 108 118 128 138 147 157 167 177 187 197
SS 23 0.37 / 0.50 25x25 Q Discharge in Lph 1900 1760 1600 1400 1220 1040 850 480
SS 53 0.75 / 1.0 25x25 2100 2000 1870 1720 1580 1430 1280 1150 1000 800 640 450
SS 73 1.1 / 1.5 25x25 2950 2890 2840 2780 2720 2630 2540 2400 2290 2170 2060 1940 1720 1570 1360 1120 780 550

Shallow well Series for 9 meters suction Lift

Model No. Motor Power KW / HP Pipe Size in mm Mtr H-Head in Meters / Feet
3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
Feet 10 20 30 39 49 59 69 79 89 98 108 118 128 138 147 157 167 177 187 197
STCSP 422 0.37 / 0.50 25x25 Q Discharge in Lph 2000 1980 1930 1900 1900 1900 1900 1900 1750 1200 720 250
STCSP 722 0.75 / 1.0 25x25 2000 1920 1900 1880 1850 1800 1800 1800 1800 1800 1680 980 550 40M-450

Slow speed series

Model No. Motor Power KW / HP Pipe Size in mm Mtr H-Head in Meters / Feet
3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
Feet 10 20 30 39 49 59 69 79 89 98 108 118 128 138 147 157 167 177 187 197
DSS2 0.37 / 0.50 25x25 Q Discharge in Lph 2500 2300 2100 1900 1700 1550 1300 1100 900 600 400
STM 7D 0.75 / 1.0 25x25 3500 3300 3100 2950 2750 2450 2200 1950 1700 1400 1200 1000 700

240 Volts, 50Hz, AC, Single Phase Supply
