Operation

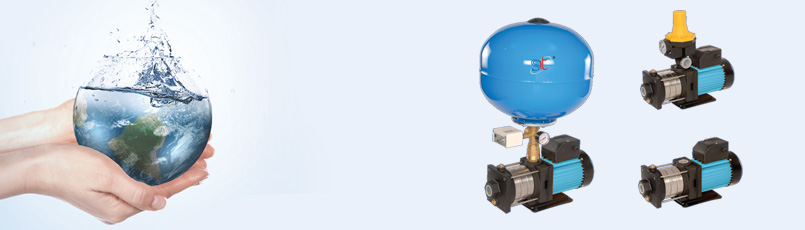

Pressure Booster system can provide optimum pressure to every bathroom or water fixture in your home and garden at the same time.
Salient Features
- Adjustable pressure setting
- Constant delivery pressure and flow
- Automatic on / off operation on opening or closing of the tap
Application
- Automatic distribution of pressurized water from storage tank
- Shower and flush-outs
- High pressure water supply and car washing
Performance Table Download
| Model No. | Motor Power KW / HP | Pipe Size in mm | M3 / h | Discharge in m3 / h (or) lpm | ||||||||||||||||||||
| 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | |||||||||||||||||
| Suction | Delivery | 1 / min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | ||||||||||||||
| STCM 06 | 0.60 / 0.80 | 25 x 25 | Head in mtr | 30 | 25 | 21 | 17 | 6 | ||||||||||||||||
| STCM 08 | 0.75 / 1.00 | 25 x 25 | 40 | 35 | 30 | 26 | 16 | 6 | ||||||||||||||||
| STCM 10 | 1.10 / 1.50 | 25 x 25 | 50 | 41 | 37 | 33 | 29 | 24 | 18 | 6 | ||||||||||||||
| STCM 15 | 1.50 / 2.00 | 25 x 25 | 60 | 52 | 47 | 43 | 37 | 30 | 24 | 14 | ||||||||||||||
